Purple BFG 9060 Amiga 68060 accelerator card

Purple BFG9060 Amiga 060 accelerator card

I just finished building this beautiful purple PCB BFG 9060 accelerator card for the Amiga and thought I would share a picture of it. As it was mostly already finished it just took an hour to solder on the KEL connector, fan header and voltage thing (regulator I think?).

I finally get to use the original spec Motorola 040 CPU heatsink that came from an old 040 C= 3640 CPU card I had 20+ years ago. Just have to get some thermal tape, will also add heatsinks to the CPLDs. This card will not be overclocked as it is fitted with a rev 5 68060.

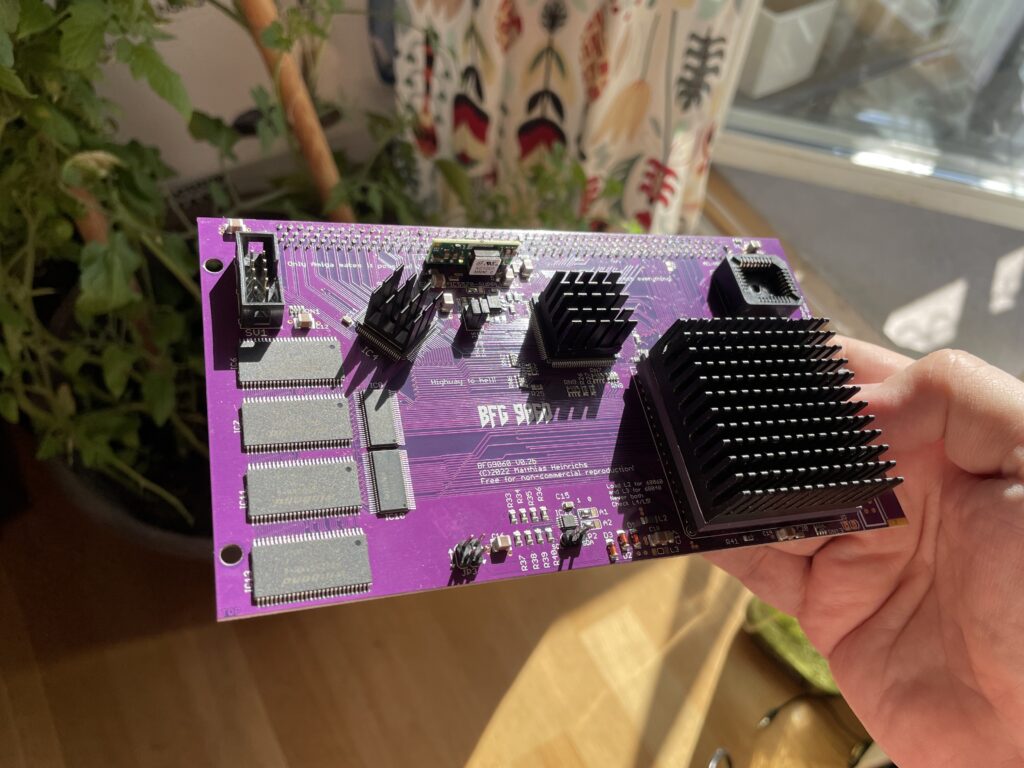

Updated picture of the BFG9060 with heatsinks added

I would like to take the opportunity to thank everyone involved in making this project a reality!

Here are some links related to BFG 9060:
